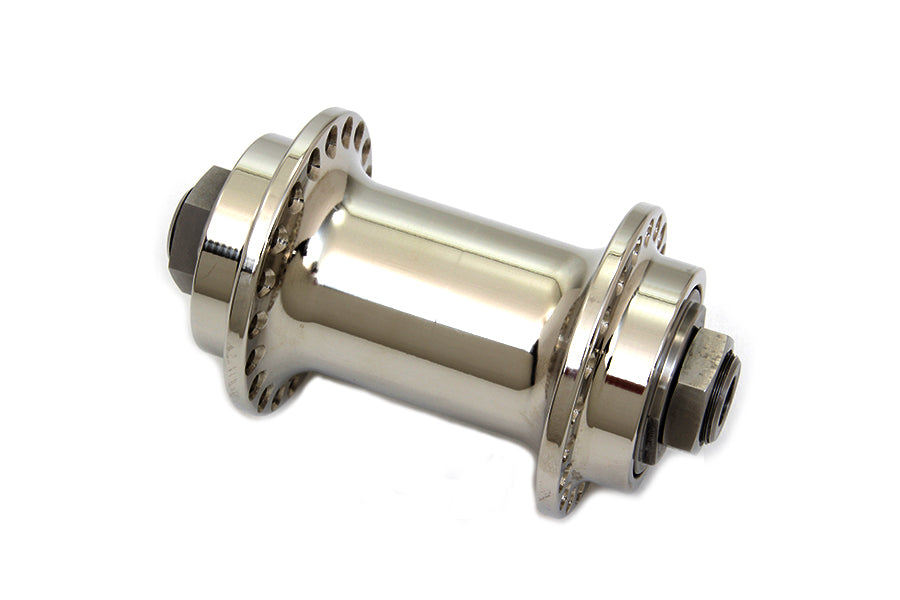

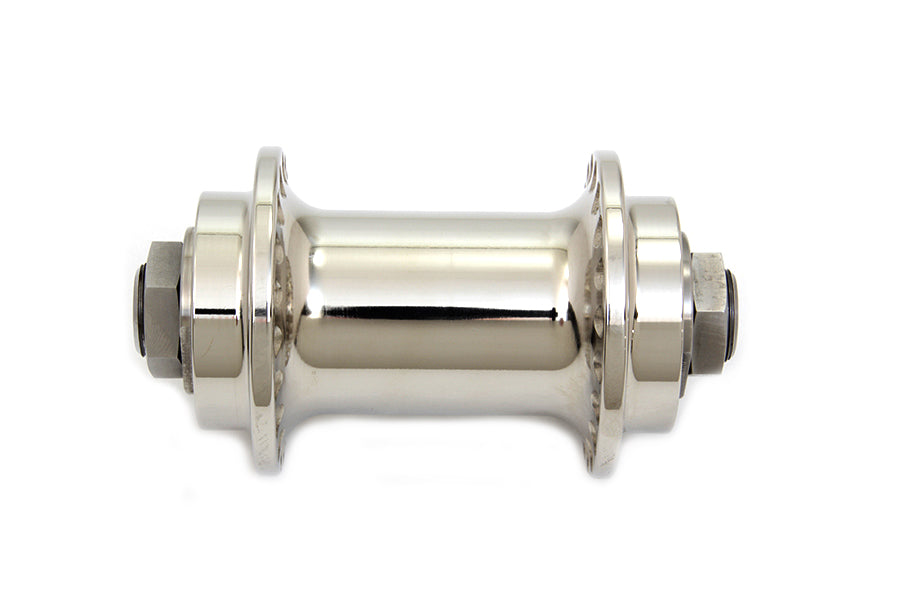

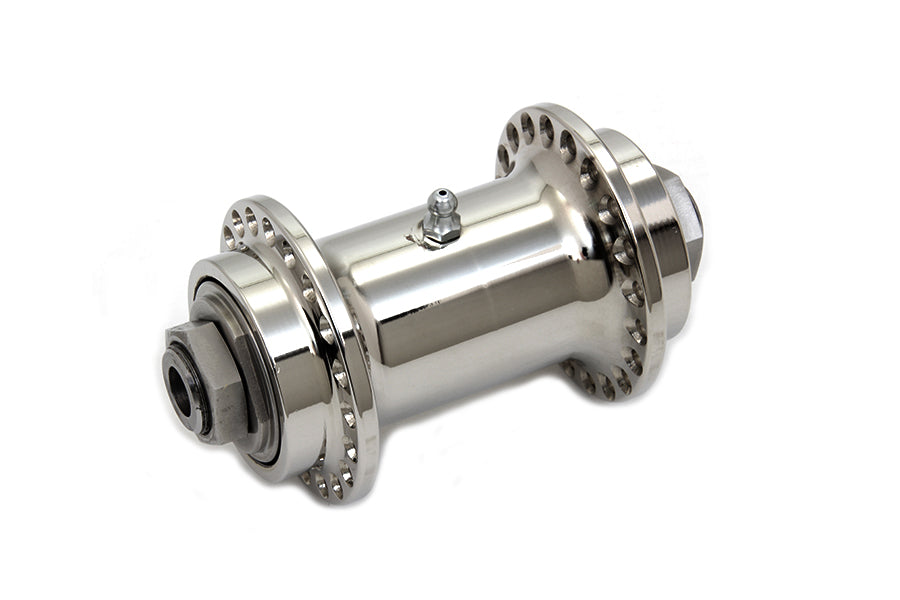

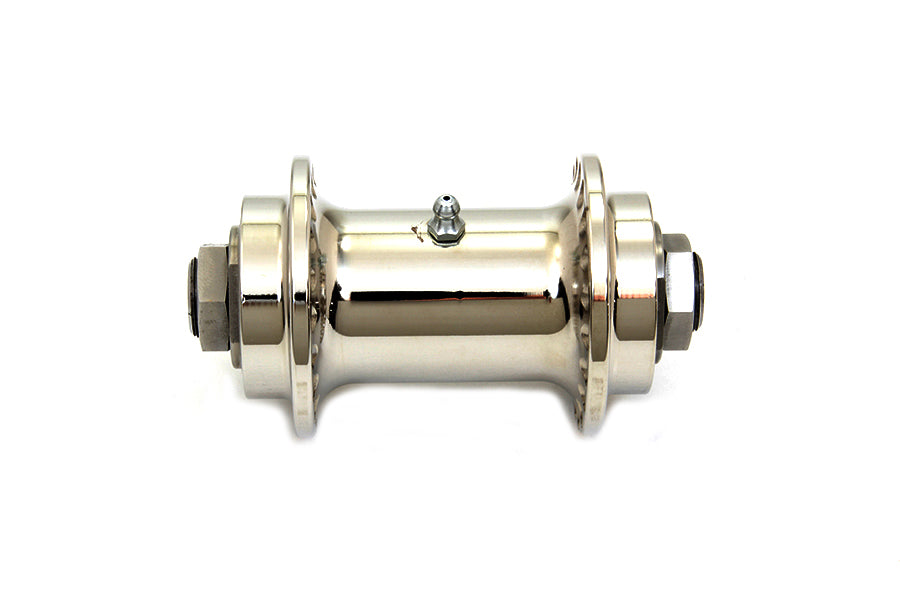

| Front spool hub is nickel plated and includes 3/8 internal ball bearings that accepts stock WL 45 axle and nuts. Includes a 3/8 inner diameter threaded sleeve to adapt the sealed ball bearings on each side. Will accept a 4.9 wide axle and nuts for use on WL 45 Spring Forks with inside rocker configuration. Center tube of hub measures to be 6.5 . Does not require spacers for installation on WL fork assemblies. For use on 18 rim stainless steel spoke set. The distance between the inside of the rocker on a 45 WL spring fork measyres 6-1/2 . *NOTE: Hub is fitted with sealed ball bearings and a spacer with a 3/8 inner diameter. Hub width measures 5 . Grease fitting holes is tapped 5/16 x 32. Order tap tool if needed. *NOTE: Accepts 6-8 gauge spokes. The crease fitting is for cosmetic looks only. Order 7/16 axle separately. |
| FITS: W 1930-52 |
| UOM: EA OEM: Manufacturer: V-Twin Origin: TAIWAN Measurements: Width: 5 inches Tech Note: Suggested to use with #16-0809 Tap Tool. Suggested to use with #45-0936 18inch WR Spoke Set. Suggested to use with #44-0867 7/16inch-20 Front Axle |
